Are these springs positioned correctly?

[Lc130]

Hi All

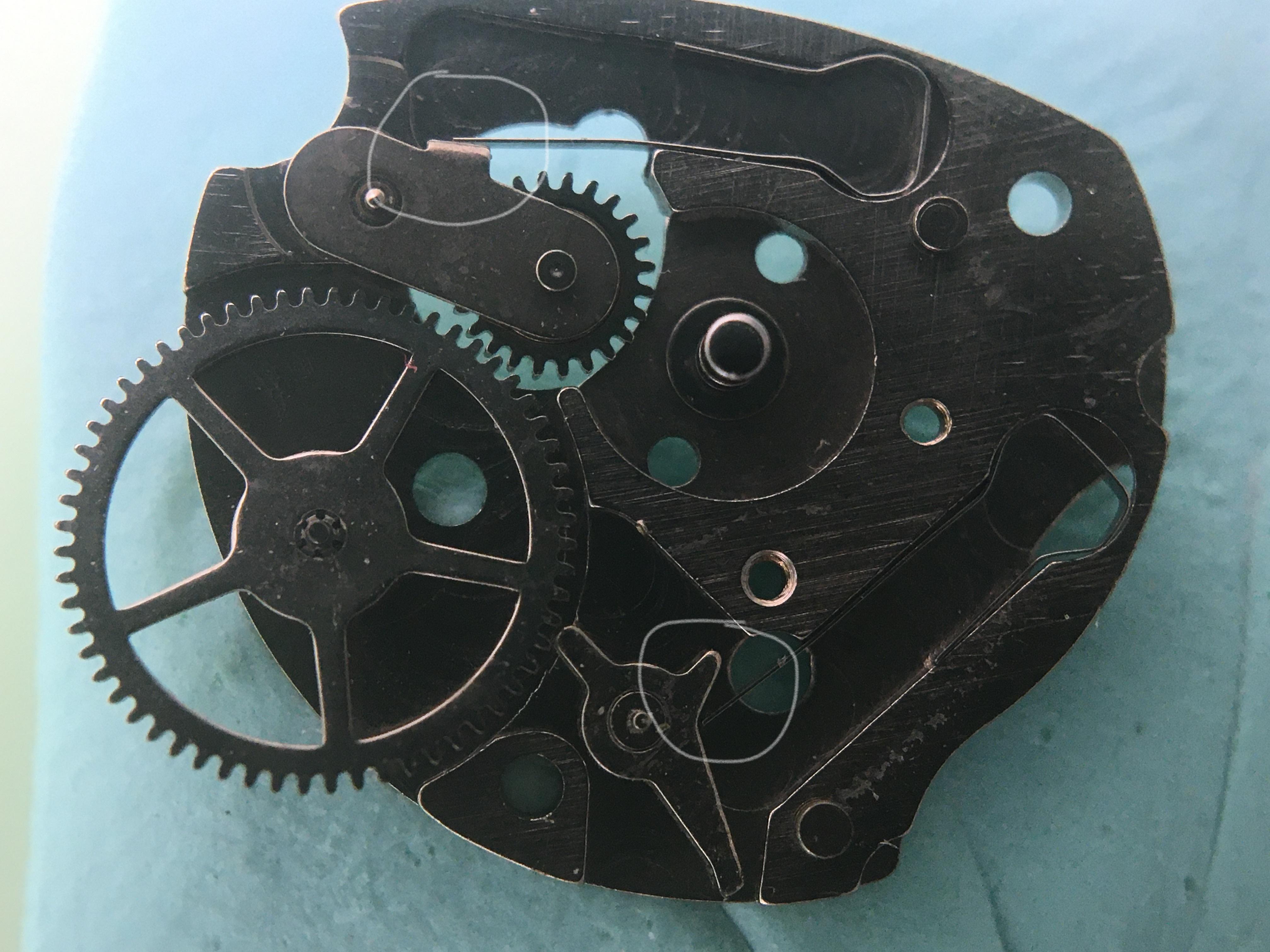

I'm a beginner.  This is the autowind for an AS 2066.  Do I have these springs positioned correctly?

Thank you

Charlie

[watchweasol]

 Hi They look ok,  attached the tech sheet for your reference,

645_as2060,1,2,6,4,6 (1).pdf

[HSL]

The springs looks okay, but..

[Lc130]

5 minutes ago, watchweasol said:

 Hi They look ok,  attached the tech sheet for your reference,

645_as2060,1,2,6,4,6 (1).pdf 2.53 MB · 0 downloads

Thanks much



Here it is again.  The top spring will push the gear up against the other gear.  That seems to make sense.  That lever thing will get pushed down.

[Lc130]

1 minute ago, HSL said:

The springs looks okay, but..is this flipped the wrong way?

No idea???  I couldn't get a picture of it during disassembly.

Thank you

Charlie



[HSL]

Something like this..

[Marc]

Here ya go...

This is a tear down reference pic for an AS2063 which has the exact same autowind module as the 2066.

Hope it helps.

[Lc130]

That's what I needed!  Thanks Marc.
