Quarter repeater mainspring thickness

AlanB
 Share

Recommended Posts

AlanB Member

AlanB

Posted
Posted

In repairing a generic Swiss cylinder quarter repeater pocket watch with no repeat mainspring I'm trying to work out how to determine the size of a suitable spring.  Barrel ID 7.6mm, Arbor 2.77mm height around 1.45mm.

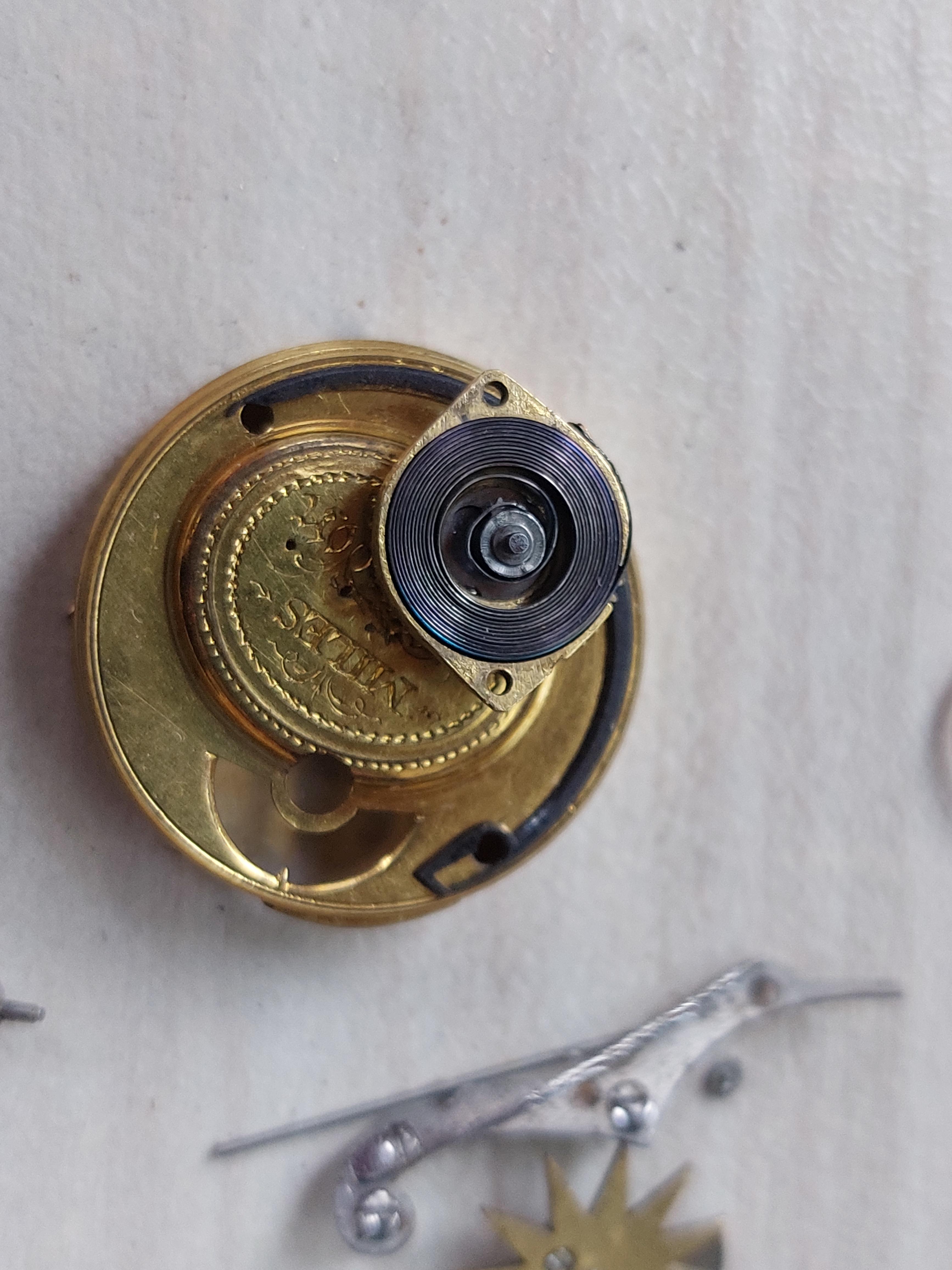

Clearly only one turn is used plus setup, but the only actual figure I can find in Saunier who says in the previous half century 3.5 turns was considered good (and Saunier is about 1880).  Calculating off that would suggest about a 0.15mm thick spring 128mm long. That feels intuitively a little thick, but I don't have another repeater conveniently to hand to check so any pointers welcome.  Photo shows the repeat train assembled without the bridge since that hides everything.



Alan




Link to comment
Share on other sites
nevenbekriev WRT Addict

nevenbekriev

Posted
Posted

Yes, the arbor usually makes about 3 to 3.5 turns. But usually spring takes 2/3 to 3/4 of the free space in barrel, not 1/2, so take it for the calcullations. This way the change in torque is smaller.

I have a picture for You, this one is little older, but no mater


  • Like 1
