ETA 955 Service Walkthrough "The Workhorse of Highend Quartz" The ETA 955 and 956 Quartz Movements are the most commonly found movement in high-end quartz watches with three hands and a date feature. You will find them in Omega, Tag, and many other brands on the market. For this walkthrough I will be using an 955.412 Movement as my example; but the 956 is so similar to the 955, that this walkthrough will suffice for both. Please note that the numbers after the decimal place only relates to the factory in which the movement was made, so yours could read 955.112, or another factory number ... regardless, the parts are identical and interchangeable. As with all movements, quartz or mechanical, they have a service interval that should be adhered to for longevity of the movement. With quartz movements when the lubrication becomes dried out, or the movement becomes dirty, they will draw more and more current from the battery in order to maintain accurate time keeping. The ETA 955/6, when in optimum condition should draw around 800nA ~ 1.5uA, if the movement is drawing more power than this, a service is required. If a service is not performed, the battery life with decrease markedly, and can go as far as drawing more power from the battery than it was designed for, and damage the battery and cause it to leak and corrode your valuable time piece. Service Manual for the 955/6 Movement CT_956412_FDE_493024_06.pdf.PDF Disassembly Remove the two Date Wheel Keepers. I always start with the one holding the Date Jumper Spring in place. Sometimes the Date Jumper Spring can ping out of place, so be careful when removing the keeper plate above it. Here is a reference photo in case it moves before you see how it's properly seated. Next remove the Keepers and Date Wheel. Then remove the Date Jumper Spring, Motion and Calendar Work. This will leave only the Keyless Work; remove the Yoke and the Sliding Pinion only. We need to flip the movement over, and disassemble the IC Board before we can remove the rest of the Keyless Work. With the movement flipped over, remove the 3 screws holding the Coil Protector. Note for re-assembly the Gold Screw in the centre. Now that the Coil Protector is removed, GREAT care must be taken not to damage the exposed fine windings of the Coil. Then to remove the IC Board, simply remove the 2 remaining screws that hold it. Do this slowly and carefully, as you do not want to slip off the screw and damage this delicate circuit. The same level of care needs to be taken when removing the IC Board from the Main Plate. Take your time and carefully lift it off and store it immediately out of harms way. Next remove the black Insulator Block, and Battery Insulator. This will expose the Setting Lever Spring Clip, which will enable you to remove the rest of the Keyless Work. To remove the Setting Lever Spring Clip, place both points of your tweezers on the locations where I've placed the stars and gently push down on the spring. Then with a piece of Pegwood, push the spring in the direction of the arrow until it moves to the larger opening slot. This will now allow the Setting Lever to be removed, along with the rest of the Keyless Work. Next remove the Stop Lever and Switch, and remove the one screw holding the Train Bridge in place. Then carefully remove the Gear Train and the Rotor. The movement is now completely stripped and ready for inspection and cleaning. There are some parts that you do not place in the parts cleaner, they are as follows: Date Ring Rotor IC Board The rest should be demagnetized prior to cleaning to avoid any metal particles in your cleaning solution from sticking to your parts. When cleaning I also including the Insulator Block, and Battery Insulator in the basket, normal watch cleaning solutions do not harm these items and it is essential they are completely clean to provide the best insulation possible. The Rotor should be cleaned by use of Rodico. As you can see from the picture below, it's surprising the dirt and old oil this will remove ... and it is sufficient cleaning for the Rotor. I hope this has been a help to you, and I will post the assembly procedure later today, if time permits.
- 24 replies
-
- 13
-

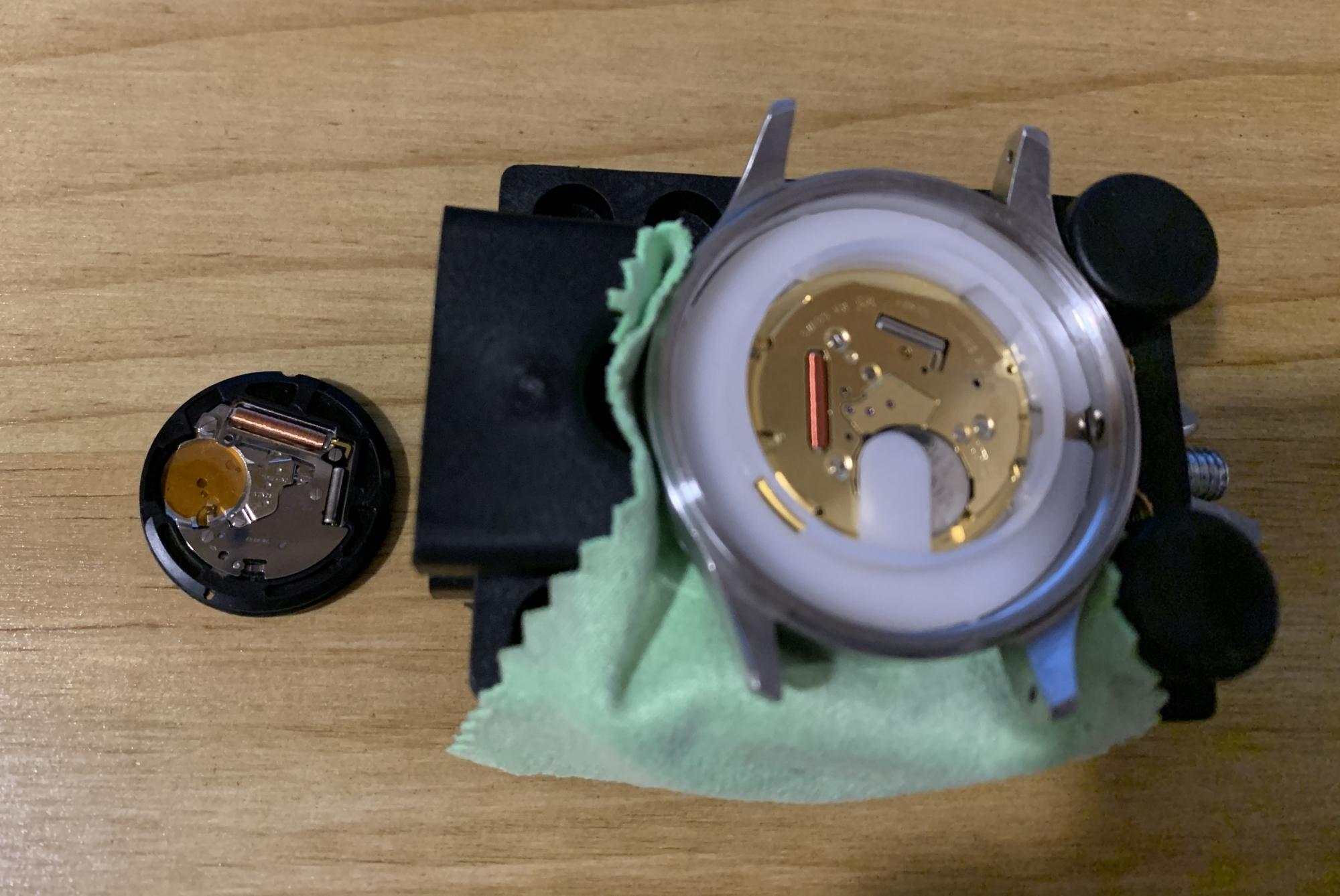

Hi everyone, I hope you're all doing well. I'm looking to replace my V253 movement with a 1L45 movement. Boley lists the VX07 and Ronda 1069 as equivalents. However, the subsecond position on the Ronda 1069 is 6.3mm from the center, compared to 6.6mm on the V253 or VX07. Since the VX07 is discontinued, I've researched and found that the Miyota 1L45 movement seems to be the next best option. One concern I have is that the dial hand sizes for the 1L45 are slightly larger at 0.70x1.20x0.18mm compared to 0.65x1.10mm on the V253. Unfortunately, the spec sheet does not list the size for the seconds hand. Any insights or advice on this replacement would be greatly appreciated. Thanks! HATTORY-PULSAR-V253A.pdf
-

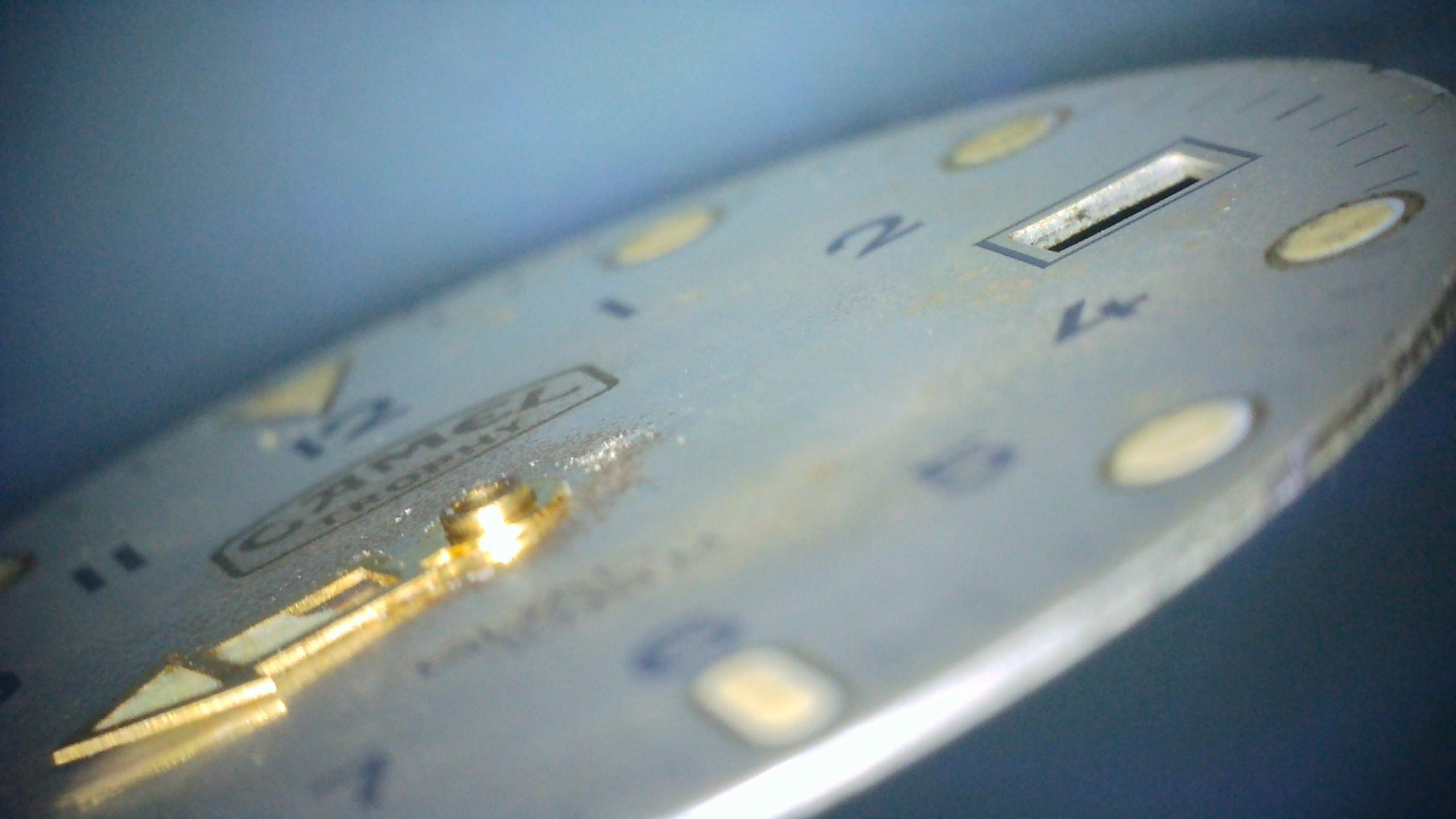

Hi gents. So, my lady sometimes wears a Camel Trophy watch that runs on batteries powered by an ETA 955 412 movement. The watch began having trouble setting the time, although it sets the date just fine. I opened it, took it out of the case and began removing the hands so I could remove the dial and take a look at the keyless works, but I can't seem to remove the hour hand. The hand is too low, it's touching the dial and my hand removing clips can't sneak underneath to pull it. Anyway, I loosen the dial feet holders and took the dial off, thinking that by doing this, the hour hand would come off, but no... I noticed the hour wheel got stuck too on the back of the dial. Now, I'm afraid that whatever I do to try to get these off will somehow damage them... Any suggestions? Thanks!
-
Looking for some help, my friend had an issue with his watch having water enter the movement. It has stopped working and I fear the movement could be fried. Just in case this worst case scenario plays out I was looking at new movements. The movement is an ETA (Tag) 955.112. I looked on CousinsUK and they say it is a discontinued movement. They only have the version without the seconds hand for sale. Does anyone know the correct movement to replace the ETA 955.112 with? I did see one site state that the ETA F06.111 was the replacement, but I'm not sure I trust the source enough to order one without checking here first. Also it looks like the crystal gasket may be to blame, can anyone point me in the right direction for a replacement? It is a Tag Kirium, but the part numbers have been worn off that case back. I guess this would also imply that the 955.114 could also replace the 955.112??
-

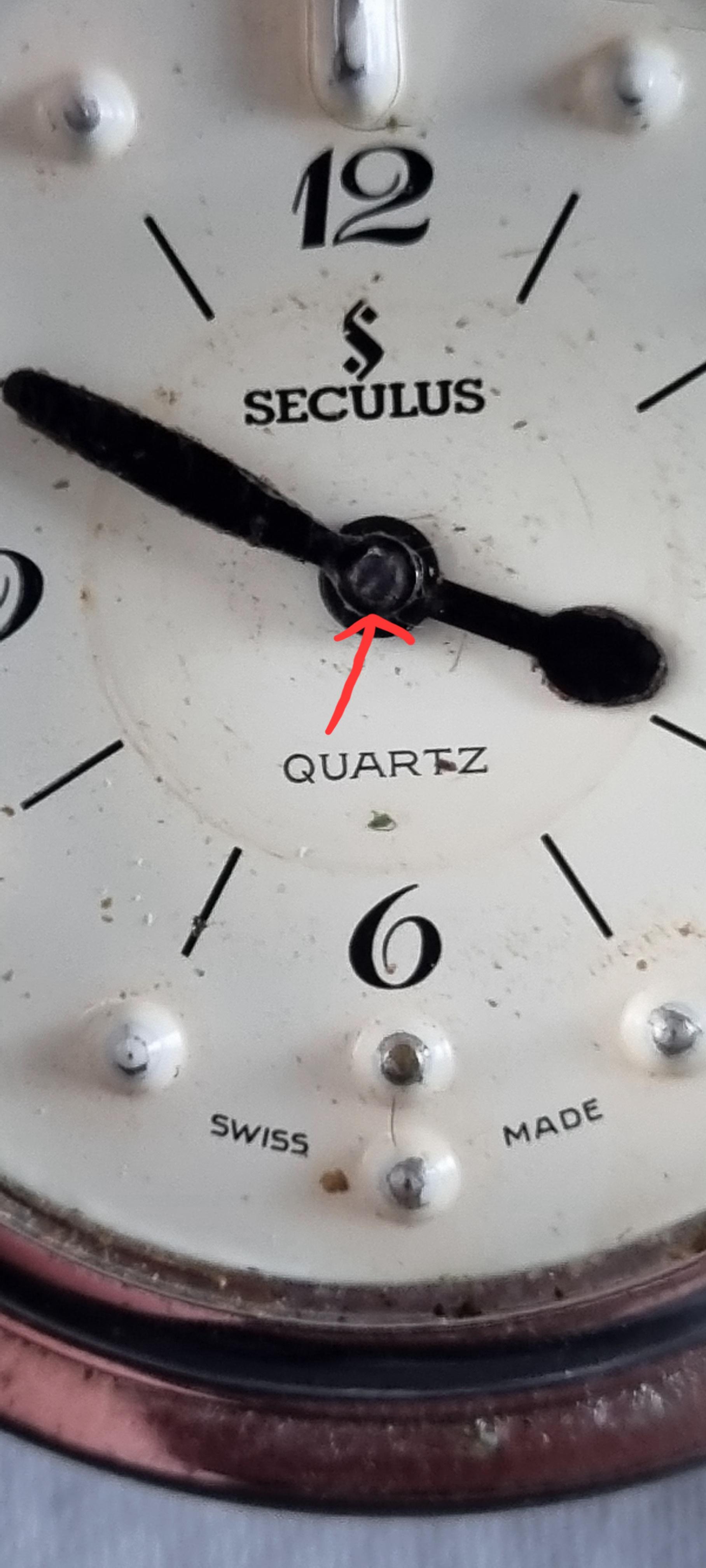

Hello everyone, I found myself in a really embarrassing situation. A member of our distant family had an accident many years ago and has since lost his sight. Until now, he used a watch with braille. Well, they broke, and as the first reason, since it's a quartz watch, I evaluated that it was the battery, it was replaced, but it still didn't work. So I said to myself that I will take them apart, clean them as much as I can and I will see. And here the problem arose. I lost a small screw during assembly. I mean a really small one and I have no idea how to buy such a screw or if it can be bought at all. The movement in question is eta 955.112 and it is divided into two-hand and three-hand movement. I have the two-hand movement, the one without the second hand, and the lost screw goes in place of the second hand. Its purpose is to hold the hands in place as people with visual impairments have to feel them. Could someone please advise me on what kind of log goes into it and where I could buy it? It is a very unpleasant situation for me because the guy has been through a lot and I would not like to return an even more broken watch to him. I was still thinking about having them repaired by a watchmaker, but when I inquired, it would be quite expensive, I would rather solve it with the screw if possible. Thank you in advance for your advice
-

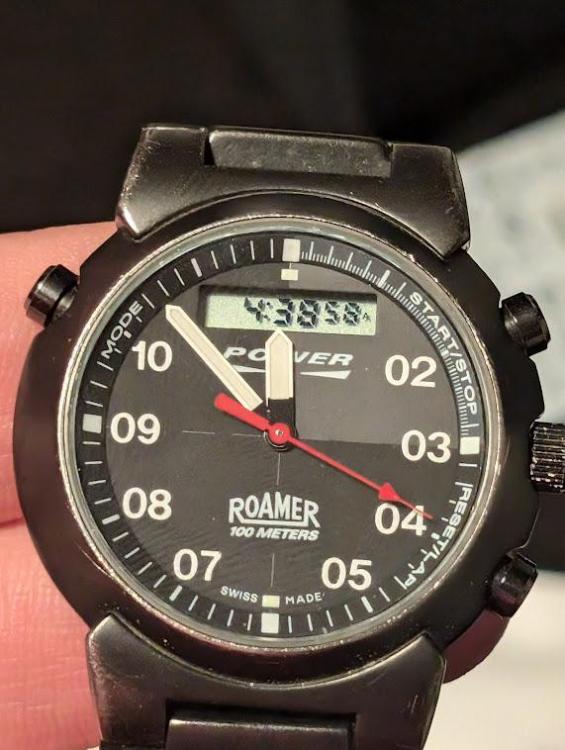

I'm looking for any instructions for this watch to reset everything after a battery change. It's some complex series of presses on the 3 pushers and 1 crown but I can't remember the sequence and I've lost the instruction sheet that I had. Any help would be appreciated
-
Greetings all. I think I may have made a mistake in buying a GP watch that has the 641-875 quartz movement in it. It's a nice looking watch, with a very solid case, but I didn't find out about the caliber number until after I bought it. The seller did not have an image of the movement. Since I usually like GP movements, I thought it was worth a little gamble on getting it running, even if I had to clean it. After the auction ended I found out about these GP quartz movements that are impossible to get parts for, and that the dead ones usually need a circuit that is made of unobtainium. Since the watch had an old battery (Union Carbide brand) in it I figured that I might get lucky and get it running with a fresh battery. I wasn't counting on that happening since the guy who sold it was a watch guy. It would be hard to believe that he didn't at least try a new battery in there. Anyway, it didn't get it running. Does anyone know about these rather interesting old quartz movements? I believe it is from the late seventies perhaps? Is there any use in seeing if one of those quartz movement "spinners" could free things up? Unfortunately, it's not like GP provides technical info the way a company like ETA does, so if I take it apart I'll have to take a lot of images as I do. Anyway, any help on this is appreciated. Thanks ahead of time. Stay healthy, all. Cheers.
-

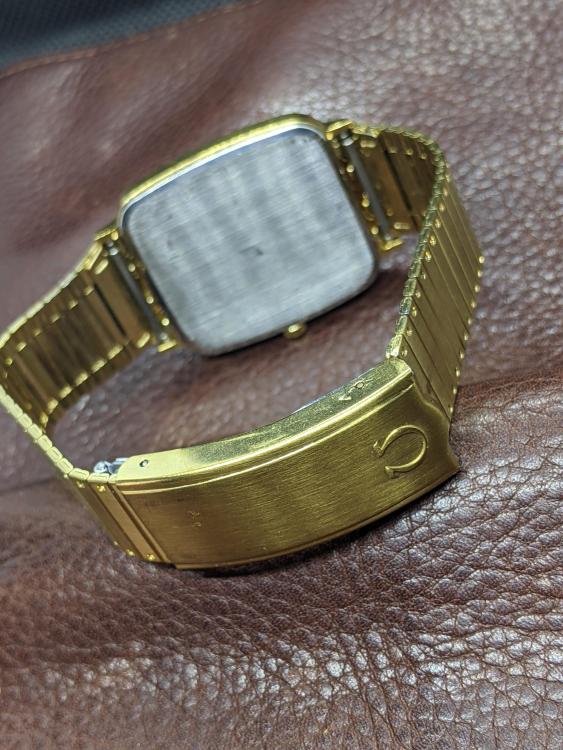

I have here one of my late father's watches, a Rectangular faced watch measuring 3/4" wide x 1" tall. It is made with bracelet and a clasp but it does not look like a deployant or deployment clasp. To get the watch case back off I had to open the bracelet and I can't remember the sequence to get it back together. I got it running but the band probably needs dissassembly from the watch and an ultrasonci cleaning. Would someone know the name of this style of clasp? I've no had much luck with google. Thanks in advance, I thin that since joining this forum a few months ago I have now sucessfully changed the batteries in 11 watches and only a couple to go, before every watch in our house is working again. The next thing I want to learn (after learning about this bracelet / clasp LOL) is how to clean a watch properly. You guys are very resourceful. THANK YOU Mark
-
Hello to all, My name is Ash (from NZ). Im a watch enthusiast and trying to learn more about Horology. I have been picking odd watch repair jobs here and there and self-learning. Firstly, thanks a lot to Mark Lovick for uploading fantastic videos on youtube that are so simple to follow. Keep up the great work Question - is there a way to diagnose quartz watch circuit using those test probes (that have an LED inbuilt) or perhaps using a multi-meter? For some watch movements such as Myota 2035, it makes sense to replace the whole movement. In other cases, it make sense to repair it (if possible). Is there a way to narrow down the faults in quartz watch? For instance, if a watch is gaining/loosing time, it could be the quartz crystal out of freq etc. how can it be scanned appropriately? Im not sure if its even possible or not. Hopefully I could get some help here. Thanks a lot in advance Ash
-

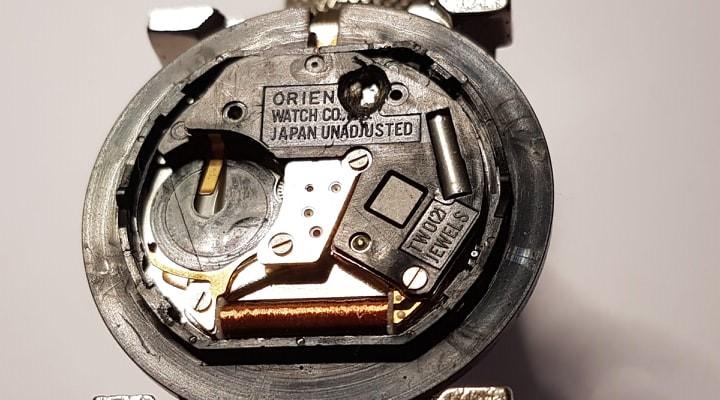

Hello everyone, Today my partner in crime is the little guy below. History unknown. I purchased it when I was living in Japan. The battery left inside for a long time I think and was in leaked situation. I took it to a watch maker and he told me that he cannot get any readings so it may be a bad coil or something else and refused to deal with it. I took it apart to show you and ask your advice. I don't know how to troubleshoot a quartz movements (sounds like I know mechanical ones ) so where I should begin to diagnose? Inserted a battery, no sign of any life. Mechanical parts moving without any issues, also the date changes flawlessly. There is one thing though, I marked on the photo below, when I was cleaning inner part, I found some black, plastic crumbled parts probably deteriorated because the battery chemicals and the rest of it was under that brass screw (still some stuck there), probably it is a non-conductive material to prevent some shorting! The movement number on the dial is: For future newbies like myself, to remove the backing, you need to press the tiny triangle locking pins (2 of them is enough to let the back go off) shown below:
-
I am in the process of building a custom tester based on the Accutron 600 test set. I choose the 600 because I have a pristine 700 and dont mind hacking the 600. I like the test set because of the huge 25ua meter! I am designing a variable battery source using a miniature digital volt meter mounted on a 3D printed module that plugs into the hole in the 600 test set (where the leads are stored). This is not a "does everything" tester either. It will let me test for low and high battery voltages, and also test pulse current. The picture shows the current state of the module--basically got the 3D print done. The electronics will be trivial.
-
Hello all, I required a movement to fit in a very small space and opted for the Hattori VX01. I am embarrassed to admit that I unsure how to keep the battery (379) in place. The metal arms either side don't look to me as if they are supposed to be levered up onto the battery, especially as one has the end angled down towards the movement. If anyone has worked with the VX01 or a similar movement I would very much appreciate the benefit of your knowledge.
-
I have an omega watch, the inside of the case is signed as is the movement, however I cannot find another one like it anywhere online. Has a Harley Ronda 3775 movement (signed Omega). Before I try and sell this I just want to make sure it's real. Seems strange to put a in decent quartz movement, have it signed inside the case and on the movement and be a fake, but since I can't find another like it I want to make sure. Any help is greatly appreciated!
-
Hi all, newbie here. I guess I've ended up a bit of a watch fan with a bunch of watches in my current collection (pic below), plus a few others I've sold. I haven't done that much modding of my watches, just battery changes and realigning hands on a few occasions. But I did put together a Series One watch from buildyourownwatch.com a few years (which I've actually sold since). At some point I would like to get more into building my own design, but baby steps first Anyway, my Helgray Field Officer II watch has been a trusty daily beater for some time, with a quartz Ronda 515 movement. The battery ran out a few weeks ago, so I ordered a replacement, put it in - watch didn't restart? Tried with a different battery, nada. Both were new batteries in original packaging with expiry dates years in the future. After looking around I found a few others online saying they'd had similar experiences when replacing the battery on a Ronda 515 movement. Seems like the movement is prone to dying at battery replacement time. So after a bit of hunting around at specs and seeing what I could easily get a hold of locally, I decided to give an ETA F06.111 movement a go as a replacement (https://shopb2b.eta.ch/f06-111-f06.1111597973808.html). It's shows up on the ETA website as discontinued and replaced by F06.115, but I couldn't find that locally and there didn't seem to be much difference between them. There was a 0.5mm difference in stem to dial height from the F06.111 to Ronda 515, but hand sizes etc. were all the same, and the key deciding factor was a much better battery life - 68 months using a Renata 371, as opposed to 45 months for the 515. Good news - it all worked. Switched over the hands to the new movement - even with tweezers and a hand press, I still find fitting hands the fiddliest of all! The hands maybe did get a little beat up from pinging out of my tweezers so often. The second hand isn't perfectly aligned but maybe I'll have another go some other time on that. Seems to me there's a market for a simple watch hand-friendly clamp, with a fine x-y axis adjustment to line it up to the dial and press mechanism to fit hands accurately and softly. Also needed to switch the crown onto the new stem and cut it to fit. Once the stem is in the new movement, the crown does sit at a slight angle if you look closely from the side, due to the 0.5mm difference in stem to dial height between the movements, but the actual date/time mechanism etc all works fine. I have a Renata 395 battery on the way, which the ETA movement can take and ups the battery life to 94 months! A few pics, and the Field Officer back in the working collection
-
8f56 Help with Seiko Perpetual 8f56 movement.
jbirkrepair posted a topic in Watch Repairs Help & Advice
Hi, I recently purchased a Seiko GMT Perpetual off eBay. The watch has a 8f56 Movement which is the high accuracy quartz movement. The watch was purchased with a low battery (indicated by the second hand ticking every 5 seconds). I've since replaced the battery and reset the perpetual calendar, the watch was working for about 3 hours and then just stopped. I've since tried to reset the perpetual calendar again and it doesn't do anything just completely dead. I recently went to a local watch repair shop and they said it would need a entirely new movement and would set me back £250 for it. It would however be done by Seiko not themselves. Any help is much appreciated.- 18 replies
-
- seiko
- perpetual calendar
-
(and 1 more)
Tagged with:
-
Cheers mates! Arkobugg are doing things he haven’t done before… This movement are dead, and I need a new one, how do I do this?? Where can I find one that fit??
-
Hello, I recently reacquired a watch I had swapped off to a friend years ago, a Seiko 7t62-0am0 Asymmetry (I believe was the name). The watch is a quartz movement and is a chronograph. When I initially bought the watch (new) it was worn gently. When I traded off the piece it was to a dear friend who tucked it away in a box and essentially forgot about it until recently. I got the piece back a few weeks ago, had a battery installed at an AD and it worked normally. After arriving home, I put on the watch and it was functioning normally, except it stopped after about 30 or so minutes. I took it off thinking it was a faulty battery or connection, but when I looked at it the next day in the display case it was again working. After repeatedly wearing the watch and removing the watch when it would stop, I have come to believe that my body heat is causing some metal part to expand, thereby making the watch stop. Could this be the case? If so, what exactly is the issue (i.e., which part is the culprit)? *the photo is a stock photo of this model watch* Thank you in advance for your assistance. Respectfully, Dr. C. King
-
Hey everyone, I cant find out how to get this drown off and I've tried everything. The Miyota JS25 movement says PUSH and points to a hole which I've learned means this is where you press to reease the crown but I still can't get the crown out no matter which position the crown is in. I first tried with the crown all the way out then with it halfway in, then all the way in and haven't been able to get it out, please help.
-
Hello fellow watch freaks. It's been a while since I've posted a service walkthrough, but I had an accident that destroyed my left shoulder and needed surgery. It's been a rough 6 months for me, with a LOT of soul searching throughout my recovery period. But I'm back on the bench ... at least at home anyway; work is a different matter, and my close friends on this forum know about that ... nuff said. This watch is owned by one of my older brother's friends. My older brother is one of the most selfless people I know, and has always been there for me. So when he asked me to do this for him it became TOP priority. It was the first item his friend purchased after he left school and began work: so there's a lot of good memories tied to this watch. As you can see it's an older quartz Seamaster with an 1337 Movement. On first inspection you can see water damage to the Dial @ 3 o'clock. So I wasn't expecting to see a happy movement inside. But when I got the Caseback off things didn't look too bad at all. Just a bit of corrosion from a cheap nasty Chinese battery. The movement still looked nice and shiny and the Stem only had a touch of rust up near the Crown. So this watch looks like one we can save :) Disassembly OK, lets begin. Fist remove the Hands and Dial from the movement. Again, absolutely no moisture damage under the Dial ... this made me VERY happy indeed. So on to the Movement Holder it goes. Remove the Battery Clamp and Insulator Ring. Then remove the 4 screws that hold the Circuit Cover. Note that there is an insulator under the cover. It is very delicate, so great care should be taken when handling it. Once the cover is removed the circuit is exposed; but before removing it, unscrew the 2 screws holding the Coil Protector and remove it. Then unscrew the Coil, and remove the Circuit and Coil. Place both the Circuit and Coil in a safe place to avoid damage, as this parts are obsolete, and if damaged you'll have to scour the internet for a donor movement ... good luck with that!! Next remove the Train Bridge Here is a reference photo of the train. As you can see, the Rotor is a very different looking animal to the modern ETA rotors. Carefully remove all the wheels, and store the Rotor in a safe place AWAY from the rest of the parts to be cleaned ... as this has to be hand cleaned due to it being magnetic. Please Note: There is a very small washer that fits between the minute wheel and the extended pivot of the Second Wheel. Be sure to identify it, and make sure it's put in the small parts container for cleaning. Here's the complete train removed from the movement for reference. Flip the movement over in the holder and remove the 3 screws of the cover that holds the Calendar Ring. As you can see that Motion Work and Calendar Work are fairly complex on this movement. Make sure you take good reference photos and study them carefully so they are not confused with wheels of the train. Remove the Calendar Ring. Remove the Motion Work and Calendar Work. Here's the complete Motion Work and Calendar Work removed from the movement for reference. The Crown and Clutch should now be able to be removed. Flip the movement over once again to tackle the Keyless Work Unscrew and remove the Setting Lever Spring. Lastly unscrew and remove the Setting Lever, Intermediate Wheel and Yoke. The Omega 1337 Movement is now completely disassembled and ready for cleaning. I will post the assembly soon.
-
I received this really nice Seiko 7T42-6A00 to service and the description was that the timer (yes, this particular 7Txx model has a timer also) was not working. After first inspection, actually I noticed that it had some more issues, among which the quickdate that was not working. I made a video presentation of this watch: I decided to strip down completely the movement since it apparently had never being serviced. A movement swap was just not an option... Opening the case no sign of damage was visible, although I did notice some very fine white dust, probably some acid liquid that had dried out. Removing the movement from the case, and inspecting it, showed indeed traces of dried up acid:
-
Got quite a peculiar one at the moment, and it's something that I've never personally encountered before. The clients watch is an Armani AR5905; he thought he needed a new battery and so here I am, Upon taking the case-back off and placing a new battery in, I heard the circuit do the all so familiar whirring noise like it was springing back to life, however when I flipped it over it wasn't ticking. So I pulled the battery out and again put it back in, but what I noticed was that the whirring noise was only happening when the battery was halfway seated and thus not making full contact, and as soon as the battery was fully seated everything ceased. This time I put the battery in halfway and then flipped over the watch to see it working, and to my surprise the seconds sub-dial at the 6 position was spinning around wildly. However again stopped when the battery was fully inserted. Anybody have any ideas as to what is going on? I could upload a video if that would help.
-
Dear all, It's my first post here, please excuse if I post to the wrong sub-forum. I own a small collection of quartz and automatic watches and at least do most of the usual service myself. A friend of mine gave me an old watch she likes and asked me if I can change the battery. She told me it's around 25 years old and cheap but she likes the dial. It was a present by a french bank she worked for. All my watches are either press or screw down backs and I have never seen a watch like this. It seems that the only possible way to open the watch is the small plastic notch on the back. I tried to open it with quite some force but it didn't open. Do I overlook something, is there a special way to open it? I also got the original case. A note in it says in french that the battery is interchangeable. Already thanks for all your help! Best regards, Martin
-
Hello all, I have a watch I would like to fix my self. It's made by TAWATEC, who is no longer in business. It's very similar to a Luminox and used TGS for lume. I will provide information to the best of my ability. Here is a link to some information about it. Here are a few pictures of the watch. I have had the watch since May of 2011. I had the battery replaced in Feb 2015 by a local shop. Less than a year later, I noticed that after taking a shower there was condensation under the crystal. I pulled the crown and left it sit to air out. After about a week I pushed the crown back in and the watch no longer worked. I wondered what caused it to leak. I then remembered I had to change the date on the watch a few days before condensation had got inside the watch. When I was trying to set the date I noticed that it was difficult to pull the crown out and it was more difficult to turn than usual. My guess was that the gasket/O-ring that is on the stem/crown was messed up and had ripped and water had entered that way. I left the watch sit for a year and used another watch as my daily driver. I'm hoping to get this one up and running again. So I recently decided to see if I could fix the watch myself. Here is what I have done and have figured out so far... I was able to remove the case back by removing the 4 Phillips screws. Visually inspecting the O-ring that seals the case back, everything looks good. The movement is a Ronda 515. The plastic ring that holds the movement inside the case says Ronda 515 # 6. I was able to remove the crown and stem. Looking towards the inside of the crown there was remnants of the O-ring. After clearing the remnants and putting the crown back in, the crown moves freely. I also found remnants if rubber on the front of the dial. After inspecting the battery, it looks to have leaked its electrolyte What I would like to do first is replace the O-Ring that's on the crown and put a new battery in it. If I then determine that the movement is damaged, I can replace it later. What do I need to do to figure out what size of O-ring I need for the crown? I can take pictures of the crown/stem if needed. I also have analog calipers to use that are in inches. Thanks for your time!
-
I agree with what you are saying completely. I plan to only keep the case and back and replace everything else. I would have loved to put a mechanical movement in the watch but I think it’s too small (33.9mm x 7.1mm). My plan is to have the case and back replated and have the back blanked of its manufacturers engraving so as I can have a blank canvas to have something engraved on it myself. I was hoping to get advice on what movements could be used and buy the parts ready for a watchmaker to assemble as like you said, I don’t want to ruin the watch. I’ve already started sourcing/ordering parts which was a little silly without any advice so I’ll post what I have ordered below (if rules permit me to do so?).
- 6 replies
-
- modernising
- quartz
-
(and 3 more)
Tagged with:
-
I have one of these in for service, cant figure out why the hour hand does not go round when time is set. The hour hand sets OK although sometimes it clicks every hour and other times it runs smooth. The minutes and seconds function fine even when setting the time. http://www.old-omegas.com/1337en.html Maybe a problem with the magnetic wheel on the date set? I looked under the microscope and it looks like the 2 part magnetic wheel on the date side is only rotating on the bottom half and not transferring the force to the top half to the hour wheel. Any ideas on how to remedy it and get her going again?? Omega 1332.pdf
